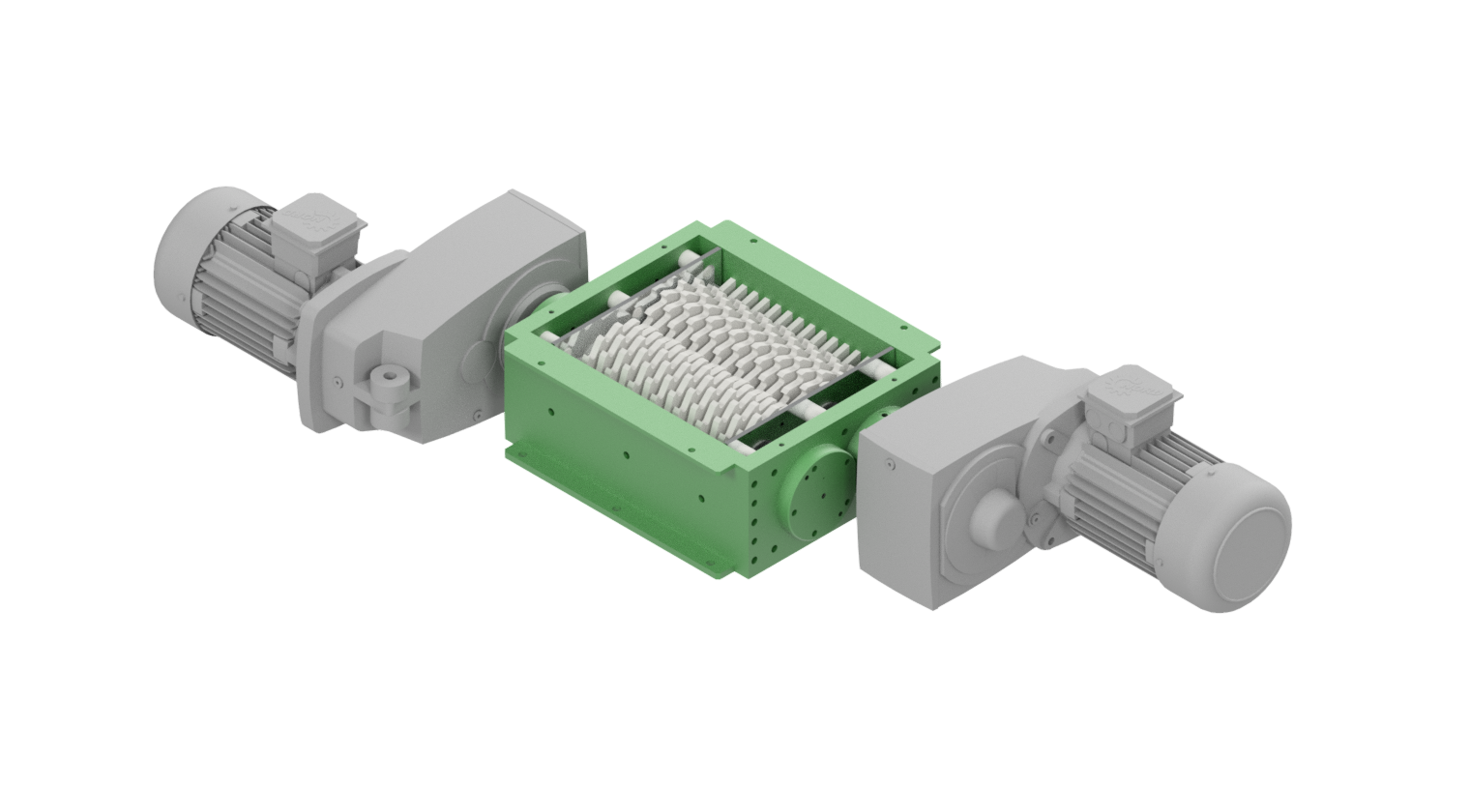

Small two-shaft shredder with two drives – SDTx

Small two-shaft shredder with two drives – SDTx

Small two-shaft shredder with two drives – SDTx

The two-shaft shredders of the SDTx range (“x” standing for working chamber length) are designed for applications requiring longer life span, more power and reliability and less maintenance, e.g. in waste sorting facilities, plastic recycling lines in central cooking facilities. The shredders are designed for shredding paper, aluminium drink cans, PET bottles, electronic waste, wooden pallets, thinner aluminium and copper cables, plastic canisters (up to about 5 litres) or for shredding CDs, DVDs and audio and video tapes.

 Shredders can be stationary or mobile with optional power generator for removal of dump sites in multiple areas. Shredders are equipped with automatic control system, which does not require too much attention from the operator. Control system actively monitors and controls overloads, set reverse counts and operational hours.

Technical data

Basic technical data
Work surfaceto 460 x 360 mm
Power inputto 2 x 4 kW
Outputto 900 kg/hour
Output fractionto 20 x 80 mm
Type Work surface
l x w (mm)
Input
kW
Output
kg/h
Output fraction
(mm)
Weight
(kg)
SDTx 3 180 x 300 2 x 1,5 - 2 x 2,2 250 - 350 12 x 40 - 80 250
Type Work surface
l x w (mm)
Input
kW
Output
kg/h
Output fraction
(mm)
Weight
(kg)
SDTx 3L 400 x 300 2 x 1,5 - 2 x 2,2 270 - 400 12 x 40 - 80 280
Type Work surface
l x w (mm)
Input
kW
Output
kg/h
Output fraction
(mm)
Weight
(kg)
SDTx 4 360 x 360 2 x 2,2 - 2 x 4 600 - 850 20 x 40 - 80 350
Type Work surface
l x w (mm)
Input
kW
Output
kg/h
Output fraction
(mm)
Weight
(kg)
SDTx 4L 460 x 360 2 x 2,2 - 2 x 4 650 - 900 20 x 40 - 80 400
